Catalog /RunTru by Trane

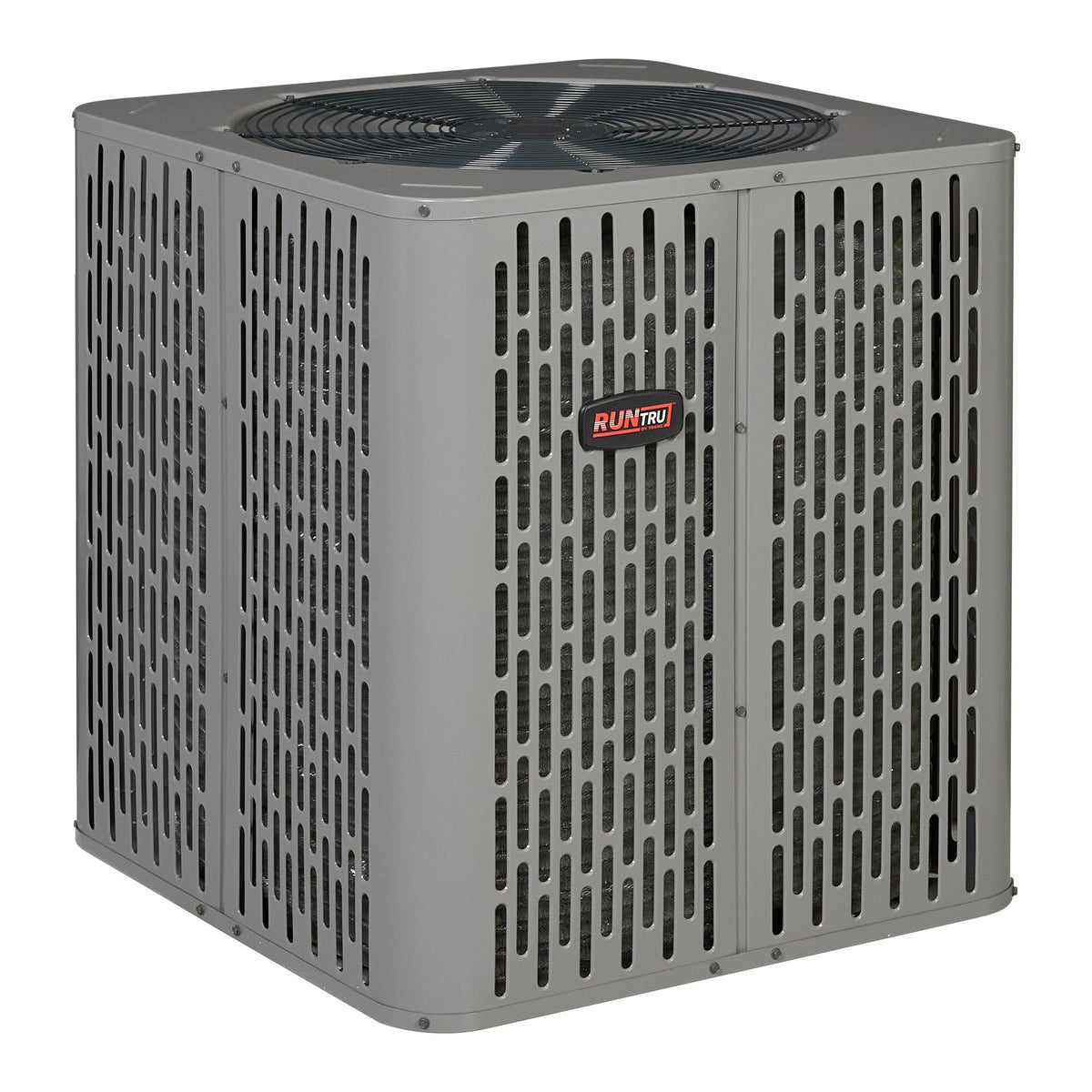

RunTru A5HP4 — 14.3 SEER2 Heat Pump Condenser

RunTru by Trane

RunTru A5HP4 Heat Pump Condenser — 1.5 to 5 Ton, 14.3 SEER2, R-454B

Heating and cooling in one efficient, value-built unit.

$2,446.43
Outdoor condenser only · Delivered to your door
$349 delivered to your door — liftgate included, whatever it weighs. $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY.
Request a Quote Call

Pay over time with Shop Pay — your options and terms are shown at checkout. How payment works

Our promise on every order

  • Typically ships in 3–7 business days — crated and moved by LTL freight from Fort Myers, FL. The carrier then schedules delivery with you.
  • Manufacturer specifications, published — model number, capacity, efficiency and refrigerant are all listed below, so you can check this against what your contractor specified.
  • Check your match in seconds — put in the two model numbers you were quoted and see whether that pair is AHRI-certified before you spend anything. Not sure, or not our equipment? Send them to us and we will look them up by hand.
  • 30 days to return unopened equipment — full returns policy.
AHRI certified Ships nationwide R-454B
Overview

About this unit

One box that heats and cools

A heat pump is an air conditioner that can run in reverse. In summer it moves heat out of the house; in winter it reverses and moves heat in. Across Florida and the lower South that covers effectively the whole heating season, with the air handler's electric heat strips carrying the handful of nights it cannot. There is no gas line, no flue and no combustion anywhere in the system — which is why heat pumps dominate new installations in this part of the country.

Trane's value brand, in a heat pump

RunTru is Trane Technologies' economy tier: the same company behind Trane, engineered to a simpler specification and priced for builders. On a heat pump that matters more than it does on a straight air conditioner, because a heat pump runs year round rather than seasonally. You want the reversing valve and compressor to come from a manufacturer whose parts are stocked locally in eight years' time, and you want a technician to be able to work on it without a factory-only tool.

14.3 SEER2 at the compliant floor

14.3 SEER2 is the minimum the current federal standard allows on a new split system across the southern states. For a rental, a flip, or any property where the occupant pays the utility bill, that is the rational place to buy: a current-generation unit at the lowest compliant efficiency, with nothing spent on savings you will not personally collect.

R-454B, the refrigerant going forward

This unit ships on R-454B rather than R-410A. R-410A equipment still being sold is previous-generation stock on a refrigerant in scheduled phase-down, which gets more expensive to service every year. A heat pump runs far more hours annually than an air conditioner does, so the refrigerant it uses matters more over its life.

Matching it correctly, and the part people forget

The A5HP4 pairs with the RunTru A5AHC multi-position air handler, and your SEER2 and HSPF2 ratings belong to that certified pair rather than to the condenser alone — the AHRI reference number is published on the listing. One thing buyers routinely miss: a heat pump needs an electric heat kit in the air handler for supplemental heat, and it is sized to your climate and sold separately. It is listed in our accessories, and your installer should specify the kW rating.

Highlights

Key features

  • 14.3 SEER2 cooling + efficient electric heating
  • R-454B low-GWP refrigerant
  • Single-stage, all-in-one heating & cooling
  • All-aluminum coils, weather-resistant cabinet
  • Trane-built reliability — pairs with the A5AHC air handler
The brand

Why RunTru by Trane?

See everything we carry from RunTru by Trane

RunTru is Trane's value line. Designed, built and tested by Trane, sold without the Trane price.

  • Same manufacturer, same engineering discipline. RunTru is not a rebadged import — it is Trane's own product, built to Trane's standards. The badge is different; the build is not.
  • Single-stage and straightforward. Fewer parts to fail, and any technician in the country can service it without specialist training or proprietary tools. On a rental you do not want to be waiting on a specialist in August.
  • All-aluminum coils. These resist the galvanic corrosion that eats copper-and-aluminum coils in coastal and high-humidity air — a real advantage in exactly the climates this equipment sells into.
  • The same warranty structure as Trane. Five years base on parts, ten with registration inside 60 days. The value line does not mean a value warranty.
  • Built for the jobs it sells into. Rentals, flips, builder work and straight like-for-like replacements — where what matters is that it runs, that it is cheap to service, and that it did not cost premium money.
The detail

Specifications & documents

Manufacturer-published figures for the model you have selected above.

At a glance

Model numberA5HP4024A1000A
Capacity 24,000 BTU cooling
Efficiency14.3 SEER2
Power supply208-230V / 1Ph / 60Hz
Sound level75 dB(A)
Full specifications A5HP4024A1000A
System typeHeat Pump Condenser
Airflow2980 CFM
Max current20 A max breaker · 13 A min circuit ampacity
Net weight174.0 lb
Crate dimensions38.3 x 31.1 x 31.1 in

Dimensions & weight

Power supply     208/230V · 1 Ph · 60 Hz
Compressor       Scroll, single-stage
Refrigerant ctrl Expansion valve
Line set         3/4 in gas × 5/16 in liquid
Refrigerant      4 lb 10 oz R-454B, factory supplied
Subcooling       12°F
Outdoor coil     All aluminum
Crated (H×W×D)   38.3 × 31.1 × 31.1 in
Shipping weight  208 lb

Manufacturer-published figures for A5HP4024A1000A. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.

Documents 2 items

Published by the manufacturer. Verify all details against the documentation shipped with your unit before installation.

Before you buy

Worth reading first

Written by people who install this equipment.

All buying guides

Getting it there

Shipping & returns

  • $349 delivered to your door, liftgate included — $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY. One flat price whatever it weighs, with nothing added at checkout.
  • Must be installed by a licensed HVAC professional — opening refrigerant lines requires EPA certification.
  • 30-day returns on unopened equipment, 20% restocking fee. No returns on installed units.

Full shipping & returns policy

How buying direct works — the whole process, start to finish 6 steps

You are buying the equipment from us and the labour from an installer you choose. Two numbers instead of one bundled quote — which is the point, but it does mean you are the one connecting them. Here is the whole sequence.

  1. Order the equipment. The price on this page is what you pay us. Nothing about installation is included in it, and nothing is added later.
  2. Line up your installer before it ships. This is the step people skip, and it is the one that causes trouble — equipment sitting in a garage while you ring round for someone free. You need a licensed HVAC professional; opening a refrigerant circuit requires EPA certification. Ask specifically what they charge to install customer-supplied equipment. How to find one.
  3. It ships crated on a freight truck. Orders typically ship within 3–7 business days. A complete system travels as two crates — condenser and air handler — which can arrive on different days. Delivery is to your address on a liftgate truck for one flat price, with nothing to choose at checkout. What delivery costs.
  4. The carrier calls to book a delivery window. That appointment is when your equipment arrives — not the ship date. Answer the call; an unanswered one is the most common cause of a delay.
  5. Inspect it before you sign. Two minutes at the tail of the truck decide whether a damage claim works. Note any damage on the delivery receipt specifically, not just "damaged", and photograph it before it comes off the truck. What to check.
  6. Your installer fits it, then register the warranty. Line set, disconnect, whip, thermostat and equipment pad are not included — your installer supplies those. Registering within 60 days of installation takes about four minutes and extends parts coverage from five years to ten. Warranty terms.

Stuck on any of it, or not sure a pairing is right? Call (239) 266-9766 — you will get someone who installs this equipment.
