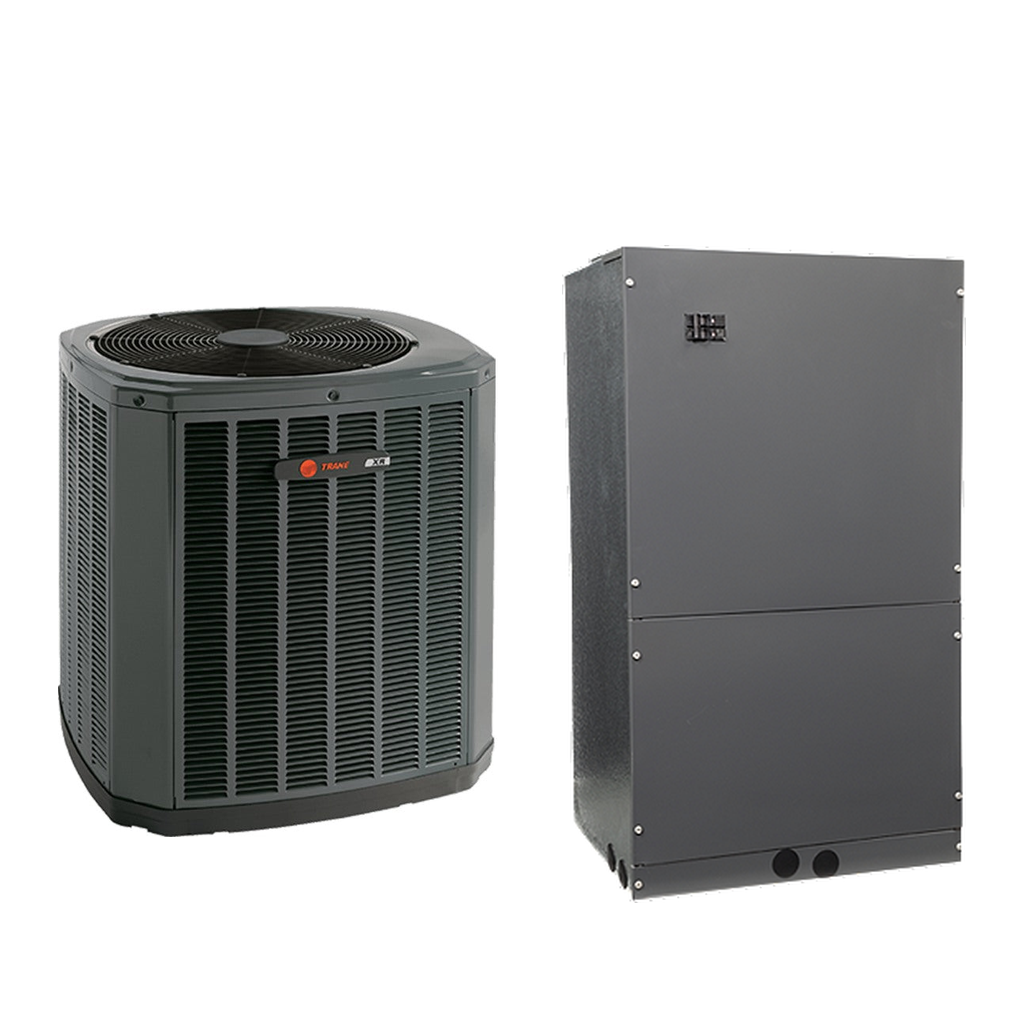

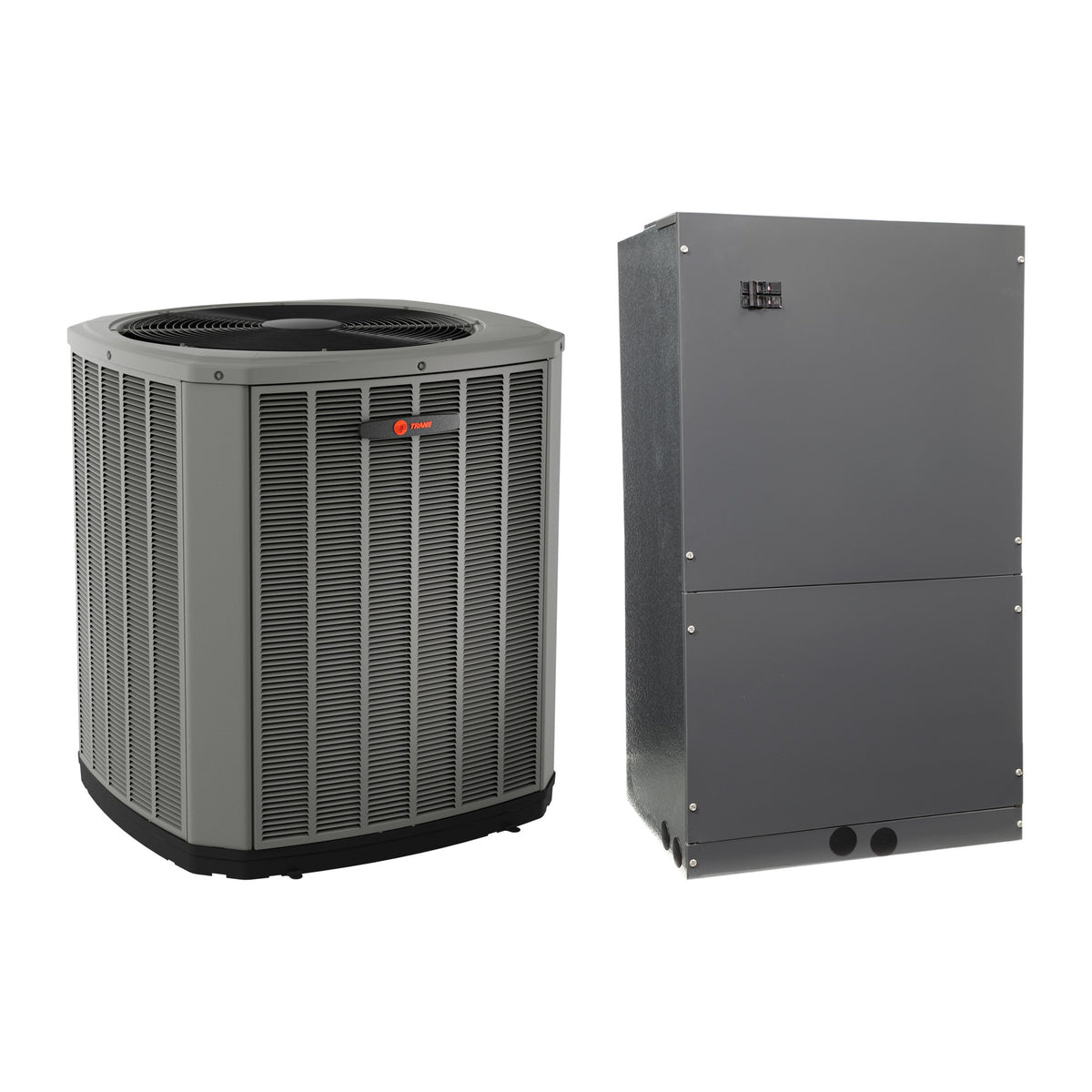

Trane 5TTR4 Air Conditioner System — 14.3 SEER2, 5TMM5 Wall Mount Air Handler, R-454B
Full Trane cooling where there is no floor space for an air handler.
Pay over time with Shop Pay — your options and terms are shown at checkout. How payment works
Our promise on every order
- Typically ships in 3–7 business days — crated and moved by LTL freight from Southwest Florida. The carrier then schedules delivery with you.
- A genuine AHRI-certified pair — the certified reference number is published in the specifications below, so you can look the rating up yourself before you order.
- Check your match in seconds — put in the two model numbers you were quoted and see whether that pair is AHRI-certified before you spend anything. Not sure, or not our equipment? Send them to us and we will look them up by hand.
- 30 days to return unopened equipment — full returns policy.
What's included, and what your installer supplies Ships as two crates by freight. Installation is not included.
In the box: the outdoor condenser and the indoor air handler, the matched pair for the size you choose (model numbers are in the specifications below).
Your installer supplies the line set (or reuses yours if it qualifies: reuse or replace?), electrical disconnect and whip, thermostat and control wire, condensate drain and float switch, a condenser pad or wall brackets, and the permit.
Electric heat is not included. The 5TMM5 takes its own heat kit; call us to match one.
Installation is by your licensed HVAC contractor. How to find one.
About this system
The Trane 5TTR4 condenser matched to the 5TMM5 Compact Plus wall-mount air handler — a complete 14.3 SEER2 system for spaces where a conventional upflow or horizontal air handler simply won't fit. The wall-hung indoor unit frees the floor entirely, making this the practical match for garages, bonus rooms, sunrooms, additions and tight utility closets, while the 5TTR4's Climatuff® compressor and powder-coated weatherproof cabinet bring the durability Trane is known for. Runs on R-454B refrigerant to meet current federal standards.
Sold and shipped as a matched pair. 1.5 through 2.5 ton ship with the 5TMM5B0A30M21S air handler; 3 ton ships with the 5TMM5B0C36M31S.
Sizing note: the 5TMM5 tops out at 3 tons, so this pairing is offered from 1.5 to 3 tons only. For 3.5 tons and above, pair the 5TTR4 with the 5TEM4 or 5TAM5 air handler instead.
HVAC Supply Pro LLC is an independent retailer. We are not affiliated with, endorsed by, or an authorized dealer of Trane, RunTru or Everwell; brand names are used only to identify the equipment we sell. All equipment is new, in its original factory packaging.
Product photos are representative manufacturer images; actual appearance may vary slightly.
Key features
- 14.3 SEER2 cooling, AHRI-certified as a matched pair
- 5TMM5 Compact Plus mounts on the wall and frees the floor entirely
- Suited to garages, additions, sunrooms and tight utility closets
- Climatuff® compressor, R-454B refrigerant
- 1.5 to 3 ton only — the 5TMM5 tops out at 3 tons
- Ships as two crates — condenser and air handler
Trane is the badge most homeowners ask for by name. Buying the pair is what makes the rating on this listing the rating you actually get.
- The Climatuff® compressor. Trane puts compressors through accelerated life testing that most manufacturers do not, and the field failure rates follow. On a component that runs into four figures to replace once the warranty is out, that is where the premium actually goes.
- The pair is what gets rated, not the condenser. AHRI certifies an outdoor unit against one specific air handler. The reference number on this listing is for that exact combination — which is also the number a rebate administrator or a permit office asks for.
- Published warranty terms. Trane's own limited warranty offers longer parts coverage when registered within 60 days, under Trane's conditions. Read them at trane.com before you buy.
- Every technician works on Trane. Parts availability fifteen years from now is not something you have to think about, and you will not struggle to find someone willing to service it.
- It holds its value. "It's a Trane" is a line in a listing when the house sells, and an inspector who sees one moves on. That is worth something on a component nobody can see working.
Specifications & documents
Manufacturer-published figures for the model you have selected above.
At a glance
| Model number | 5TTR4018A1000A+5TMM5B0A30M21S |
|---|---|
| Capacity | 15,900 BTU cooling |
| Efficiency | 14.3 SEER2 · 11.7 EER2 |
| Power supply | 208-230V / 1Ph / 60Hz |
| Refrigerant | R-454B |
| AHRI reference no. | 217176186Look it up at AHRI |
This is the certified rating for this exact pair — 5TTR4018A1000A with 5TMM5B0A30M21S. A matched pair rates differently from either unit on its own, and this is the number your installer puts on a permit or a rebate application. The link opens this system's own record in the AHRI directory, where you can download the certificate.
Full specifications 5TTR4018A1000A+5TMM5B0A30M21S
| System type | Complete System |
|---|---|
| Outdoor unit model | 5TTR4018A1000A |
| Indoor unit model | 5TMM5B0A30M21S |
| Warranty | Manufacturer's limited warranty from Trane, not HVAC Supply Pro. Trane decides coverage. Its published terms require installation by a licensed HVAC professional, offer longer parts coverage if registered within 60 days, and exclude purchases made on an uninstalled basis, including online. Review Trane's terms before you buy: trane.com/residential/en/resources/warranty-and-registration. Labor is not covered. |
Manufacturer-published figures for 5TTR4018A1000A+5TMM5B0A30M21S. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.
Documents 3 items
- Trane 5TTR4 Split System Cooling — Product and Submittal Data (ODR-PSD008B-EN, September 2025)
- AHRI certificate for ref. 217176186 - download from the AHRI directory
- Trane 5TMM5 Wall Mount Air Handlers 1.5 to 3.0 Ton — Product and Submittal Data (AHR-PSD001C-EN, June 2026)
Published by the manufacturer. Verify all details against the documentation shipped with your unit before installation.
At a glance
| Model number | 5TTR4024A1000A+5TMM5B0A30M21S |
|---|---|
| Capacity | 20,800 BTU cooling |
| Efficiency | 14.3 SEER2 · 11.7 EER2 |
| Power supply | 208-230V / 1Ph / 60Hz |
| Refrigerant | R-454B |
| AHRI reference no. | 217176188Look it up at AHRI |
This is the certified rating for this exact pair — 5TTR4024A1000A with 5TMM5B0A30M21S. A matched pair rates differently from either unit on its own, and this is the number your installer puts on a permit or a rebate application. The link opens this system's own record in the AHRI directory, where you can download the certificate.
Full specifications 5TTR4024A1000A+5TMM5B0A30M21S
| System type | Complete System |
|---|---|
| Outdoor unit model | 5TTR4024A1000A |
| Indoor unit model | 5TMM5B0A30M21S |
| Warranty | Manufacturer's limited warranty from Trane, not HVAC Supply Pro. Trane decides coverage. Its published terms require installation by a licensed HVAC professional, offer longer parts coverage if registered within 60 days, and exclude purchases made on an uninstalled basis, including online. Review Trane's terms before you buy: trane.com/residential/en/resources/warranty-and-registration. Labor is not covered. |
Manufacturer-published figures for 5TTR4024A1000A+5TMM5B0A30M21S. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.
Documents 3 items
- Trane 5TTR4 Split System Cooling — Product and Submittal Data (ODR-PSD008B-EN, September 2025)
- AHRI certificate for ref. 217176188 - download from the AHRI directory
- Trane 5TMM5 Wall Mount Air Handlers 1.5 to 3.0 Ton — Product and Submittal Data (AHR-PSD001C-EN, June 2026)
Published by the manufacturer. Verify all details against the documentation shipped with your unit before installation.
At a glance
| Model number | 5TTR4030A1000A+5TMM5B0A30M21S |
|---|---|
| Capacity | 26,000 BTU cooling |
| Efficiency | 14.3 SEER2 · 11.7 EER2 |
| Power supply | 208-230V / 1Ph / 60Hz |
| Refrigerant | R-454B |
| AHRI reference no. | 217329052Look it up at AHRI |
This is the certified rating for this exact pair — 5TTR4030A1000A with 5TMM5B0A30M21S. A matched pair rates differently from either unit on its own, and this is the number your installer puts on a permit or a rebate application. The link opens this system's own record in the AHRI directory, where you can download the certificate.
Full specifications 5TTR4030A1000A+5TMM5B0A30M21S
| System type | Complete System |
|---|---|
| Outdoor unit model | 5TTR4030A1000A |
| Indoor unit model | 5TMM5B0A30M21S |
| Warranty | Manufacturer's limited warranty from Trane, not HVAC Supply Pro. Trane decides coverage. Its published terms require installation by a licensed HVAC professional, offer longer parts coverage if registered within 60 days, and exclude purchases made on an uninstalled basis, including online. Review Trane's terms before you buy: trane.com/residential/en/resources/warranty-and-registration. Labor is not covered. |
Manufacturer-published figures for 5TTR4030A1000A+5TMM5B0A30M21S. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.
Documents 3 items
- Trane 5TTR4 Split System Cooling — Product and Submittal Data (ODR-PSD008B-EN, September 2025)
- AHRI certificate for ref. 217329052 - download from the AHRI directory
- Trane 5TMM5 Wall Mount Air Handlers 1.5 to 3.0 Ton — Product and Submittal Data (AHR-PSD001C-EN, June 2026)
Published by the manufacturer. Verify all details against the documentation shipped with your unit before installation.
At a glance
| Model number | 5TTR4036A1000A+5TMM5B0C36M31S |
|---|---|
| Capacity | 29,200 BTU cooling |
| Efficiency | 14.3 SEER2 · 11.7 EER2 |
| Power supply | 208-230V / 1Ph / 60Hz |
| Refrigerant | R-454B |
| AHRI reference no. | 217176195Look it up at AHRI |
This is the certified rating for this exact pair — 5TTR4036A1000A with 5TMM5B0C36M31S. A matched pair rates differently from either unit on its own, and this is the number your installer puts on a permit or a rebate application. The link opens this system's own record in the AHRI directory, where you can download the certificate.
Full specifications 5TTR4036A1000A+5TMM5B0C36M31S
| System type | Complete System |
|---|---|
| Outdoor unit model | 5TTR4036A1000A |
| Indoor unit model | 5TMM5B0C36M31S |
| Warranty | Manufacturer's limited warranty from Trane, not HVAC Supply Pro. Trane decides coverage. Its published terms require installation by a licensed HVAC professional, offer longer parts coverage if registered within 60 days, and exclude purchases made on an uninstalled basis, including online. Review Trane's terms before you buy: trane.com/residential/en/resources/warranty-and-registration. Labor is not covered. |
Manufacturer-published figures for 5TTR4036A1000A+5TMM5B0C36M31S. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.
Documents 3 items
- Trane 5TTR4 Split System Cooling — Product and Submittal Data (ODR-PSD008B-EN, September 2025)
- AHRI certificate for ref. 217176195 - download from the AHRI directory
- Trane 5TMM5 Wall Mount Air Handlers 1.5 to 3.0 Ton — Product and Submittal Data (AHR-PSD001C-EN, June 2026)
Published by the manufacturer. Verify all details against the documentation shipped with your unit before installation.
All models in this series
Every size we carry, with the full model number your installer and AHRI will ask for.
| Model number | Size | Price |
|---|---|---|
| 5TTR4018A1000A+5TMM5B0A30M21S | 1.5 Ton | $3,902.95 |
| 5TTR4024A1000A+5TMM5B0A30M21S | 2 Ton | $4,007.86 |
| 5TTR4030A1000A+5TMM5B0A30M21S | 2.5 Ton | $4,126.16 |
| 5TTR4036A1000A+5TMM5B0C36M31S | 3 Ton | $4,695.00 |
Reviews
Left by people who bought this from us.
Worth reading first
Written by HVAC Supply Pro.
- SEER2 Savings CalculatorPut your own system size, current rating and power bill in, and see what the efficiency step is worth per year.
- Why an AHRI-Matched System MattersWhy the condenser and air handler have to be a certified pair - and what goes wrong when they are not.
- What a New AC System Actually CostsEquipment, labour and the parts nobody quotes you for, broken out separately.
Shipping & returns
- $349 delivered to your door, liftgate included — $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY. One flat price whatever it weighs, with nothing added at checkout. Ships to the 48 contiguous states and DC.
- Must be installed by a licensed HVAC professional — opening refrigerant lines requires EPA certification.
- 30-day returns on unopened equipment, 20% restocking fee. No returns on installed units.
How buying the equipment yourself works — the whole process, start to finish
You are buying the equipment from us and the labour from an installer you choose. Two numbers instead of one bundled quote — which is the point, but it does mean you are the one connecting them. Here is the whole sequence.
- Order the equipment. The price on this page is what you pay us. Nothing about installation is included in it, and nothing is added later.
- Line up your installer before it ships. This is the step people skip, and it is the one that causes trouble — equipment sitting in a garage while you ring round for someone free. You need a licensed HVAC professional; opening a refrigerant circuit requires EPA certification. Ask specifically what they charge to install customer-supplied equipment. How to find one.
- It ships crated on a freight truck. Orders typically ship within 3–7 business days. A complete system travels as two crates — condenser and air handler — which can arrive on different days. Delivery is to your address on a liftgate truck for one flat price, with nothing to choose at checkout. What delivery costs.
- The carrier calls to book a delivery window. That appointment is when your equipment arrives — not the ship date. Answer the call; an unanswered one is the most common cause of a delay.
- Inspect it before you sign. Two minutes at the tail of the truck decide whether a damage claim works. Note any damage on the delivery receipt specifically, not just "damaged", and photograph it before it comes off the truck. What to check.
- Your installer fits it. Line set, disconnect, whip, thermostat and equipment pad are not included — your installer supplies those. If the manufacturer's terms allow, register the equipment. Trane and RunTru offer longer parts coverage when registered within 60 days, subject to their conditions. Check the manufacturer's terms before you buy. Warranty terms.
Stuck on any of it, or not sure a pairing is right? Call (239) 266-9766 — you'll get a straight answer.
