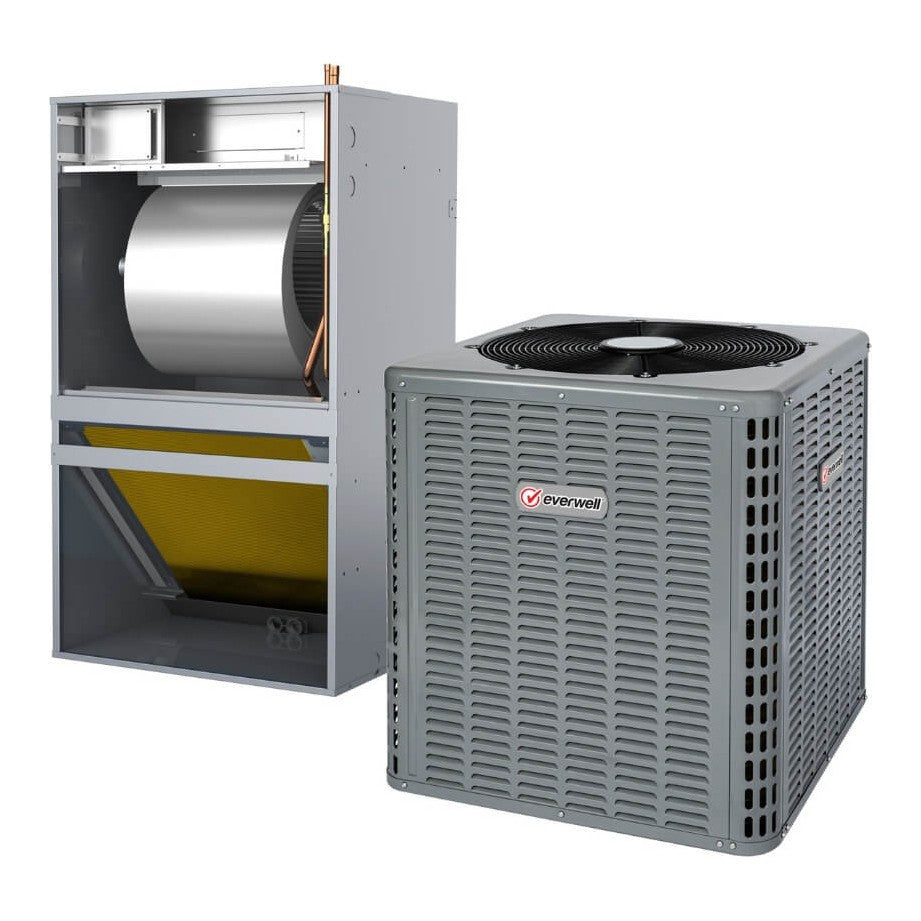

Everwell CAC-15 Air Conditioner complete system with FAHC Front-Return Air Handler: condenser and air handler, manufacturer system photo

Everwell

Everwell CAC-15 Air Conditioner System — 14.3 SEER2, FAHC Front-Return Air Handler, R-454B

Value-line cooling for closets too tight for a standard return.

$2,938.42
Complete matched system · Delivered to your door
$349 delivered to your door — liftgate included, whatever it weighs. $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY.
Request a Quote Call
WELCOME100 Code WELCOME100 saves $100 on systems $1,400+ at checkout
📱 📱 Text a Photo of Your Rating Plate or Quote to (239) 266-9766 for an Instant Match Check Tap to text your outdoor unit's rating plate photo or contractor quote to (239) 266-9766 for a fast AHRI match & price check
Got a $12k+ contractor quote? Free Quote Audit → · Interactive AHRI Match Checker →

Pay over time with Shop Pay — your options and terms are shown at checkout. How payment works

Our promise on every order

  • Typically ships in 3–7 business days — crated and moved by LTL freight from Southwest Florida. The carrier then schedules delivery with you.
  • A genuine AHRI-certified pair — the certified reference number is published in the specifications below, so you can look the rating up yourself before you order.
  • Check your match in seconds — put in the two model numbers you were quoted and see whether that pair is AHRI-certified before you spend anything. Not sure, or not our equipment? Send them to us and we will look them up by hand.
  • 30 days to return unopened equipment — full returns policy.
What's included, and what your installer supplies Ships as two crates by freight. Installation is not included.

In the box: the outdoor condenser and the indoor air handler, the matched pair for the size you choose (model numbers are in the specifications below).

Your installer supplies the line set (or reuses yours if it qualifies: reuse or replace?), electrical disconnect and whip, thermostat and control wire, condensate drain and float switch, a condenser pad or wall brackets, and the permit.

Electric heat is not included. If you want it, add the matching Everwell front-return heat kit.

Installation is by your licensed HVAC contractor. How to find one.

Need an installer? Tell us where it's going and we'll help you find a licensed one.

Equipment from us has to be installed by a licensed HVAC contractor. Send your ZIP and we'll reply with licensed installers we know near you, or how to find a good one if we don't know anyone in your area. Free, and no obligation to buy.

A person replies. We don't sell or share your details. How to choose an installer

AHRI certified Ships to the continental US R-454B
Overview

About this system

The Everwell CAC-15 condenser matched to the FAHC front-return air handler — the version for a closet that will not take a standard return. Same condenser, same certified pairing, a cabinet that fits where the other one does not.

What ships

  • Outdoor unit — Everwell CAC-15 R-454B condenser, GoldFin™-coated all-copper coil
  • Indoor unit — Everwell FAHC front-return air handler
  • Two crates, shipped together as an AHRI-certified matched pair

Front return, and when it matters

The return duct enters the front of the cabinet rather than the side or bottom. That sounds like a detail until you are standing in a hallway closet with no room to bring a return in from below — which is a common problem in older Florida houses and in any retrofit where the mechanical space was sized for equipment that is no longer made.

The FAHC is also physically smaller: the crate is 23.2 × 17.7 × 39.4 inches against the AHC's 22.83 × 25.6 × 47.63. If the existing closet is tight, measure before you choose.

What it actually rates

14.3 SEER2, certified across all four sizes. That figure belongs to this condenser and this air handler together, not to the outdoor unit alone. Everwell publishes the certificate for each pairing and the link for the size you select is in the documents on this page — or check any pairing yourself.

The GoldFin coil

An all-copper coil with a corrosion-resistant coating, built for the salt air and permanent humidity that make standard coatings fail early on the Gulf Coast.

Sizing — 1.5 to 3 ton

Four capacities. The FAHC series tops out at 3 ton; above that, the standard-return AHC version runs to 5. Get a Manual J from someone who has walked the property — an oversized system never dehumidifies, whichever cabinet it lives in.

Before you order

  • Must be installed by a licensed HVAC professional (EPA Section 608 certification is required to open a refrigerant circuit); manufacturers' warranty terms generally require licensed installation
  • No 15 kW or 20 kW heat kit on this series. The FAHC strip heat covers the smaller sizes; if this is the only heat in the house and you need the larger output, choose the AHC version instead
  • Line set, disconnect, whip, thermostat and equipment pad are not included
  • Ships as two crates — read receiving a freight delivery before delivery day

HVAC Supply Pro LLC is an independent retailer. We are not affiliated with, endorsed by, or an authorized dealer of Trane, RunTru or Everwell; brand names are used only to identify the equipment we sell. All equipment is new, in its original factory packaging.

Product photos are representative manufacturer images; actual appearance may vary slightly.

Highlights

Key features

  • 14.3 SEER2 cooling, AHRI-certified as a matched pair
  • AHRI certificate linked on every size — check the rating yourself
  • FAHC front-return air handler suits tighter closets
  • GoldFin™ coated all-copper coil resists coastal corrosion
  • No 15 kW or 20 kW heat kit on this series — choose AHC if you need one
  • Ships as two crates — condenser and air handler
The brand

Why Everwell?

See everything we carry from Everwell

Everwell is where the price per BTU is lowest — a complete matched system here costs less than some condensers do on their own.

  • Current-spec refrigerant throughout. R-454B across the central range. Nothing is last-generation stock being cleared ahead of the phase-out.
  • GoldFin coil coating. Built for high-humidity and salt-air environments where standard coil coatings fail early — the same problem the all-aluminum coils solve elsewhere in our catalogue, addressed a different way.
  • AHRI certified and ETL listed, with a certificate published per matched pair. You can pull the certificate and check the rating yourself before you spend anything — the link is in the documents on this listing.
  • Complete matched systems from $2,698. That is less than some Trane condensers cost on their own, before you have bought an air handler.
  • Both halves from one manufacturer. Condenser and air handler engineered together, so the pairing is not something you have to go and verify yourself.
The detail

Specifications & documents

Manufacturer-published figures for the model you have selected above.

At a glance

Model numberCAC3614CA15+FAHC3614BA15
Capacity 33,000 BTU cooling
Efficiency14.3 SEER2 · 11.7 EER2
RefrigerantR-454B
AHRI reference no. 216699620

This is the certified rating for this exact pair — CAC3614CA15 with FAHC3614BA15. A matched pair rates differently from either unit on its own, and this is the number your installer puts on a permit or a rebate application.

Full specifications CAC3614CA15+FAHC3614BA15
System typeComplete System
Outdoor unit modelCAC3614CA15
Indoor unit modelFAHC3614BA15
Crate dimensions30.5 x 30.5 x 26.2 + 24.6 x 21.6 x 42.9 in
WarrantyManufacturer's limited warranty from Everwell, not HVAC Supply Pro. Everwell decides coverage; its terms require installation by a licensed HVAC technician and may require registration. Review Everwell's terms before you buy: everwell-ac.com/warranty. Labor is not covered.

Manufacturer-published figures for CAC3614CA15+FAHC3614BA15. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.

Documents 2 items

Published by the manufacturer and served from their site, so the certificate you open is always the current rating. Verify all details against the documentation shipped with your unit before installation.

Model numbers

All models in this series

Every size we carry, with the full model number your installer and AHRI will ask for.

Model numberSizePrice
CAC1814CA15+FAHC2414BA15 1.5 Ton $2,718.42
CAC2414CA15+FAHC2414BA15 2 Ton $2,768.42
CAC3014CA15+FAHC3614BA15 2.5 Ton $2,918.42
CAC3614CA15+FAHC3614BA15 3 Ton $2,938.42
From buyers

Reviews

Left by people who bought this from us.

Before you buy

Worth reading first

Written by HVAC Supply Pro.

All buying guides

Getting it there

Shipping & returns

  • $349 delivered to your door, liftgate included — $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY. One flat price whatever it weighs, with nothing added at checkout. Ships to the 48 contiguous states and DC.
  • Must be installed by a licensed HVAC professional — opening refrigerant lines requires EPA certification.
  • 30-day returns on unopened equipment, 20% restocking fee. No returns on installed units.

Full shipping & returns policy

How buying the equipment yourself works — the whole process, start to finish 6 steps

You are buying the equipment from us and the labour from an installer you choose. Two numbers instead of one bundled quote — which is the point, but it does mean you are the one connecting them. Here is the whole sequence.

  1. Order the equipment. The price on this page is what you pay us. Nothing about installation is included in it, and nothing is added later.
  2. Line up your installer before it ships. This is the step people skip, and it is the one that causes trouble — equipment sitting in a garage while you ring round for someone free. You need a licensed HVAC professional; opening a refrigerant circuit requires EPA certification. Ask specifically what they charge to install customer-supplied equipment. How to find one.
  3. It ships crated on a freight truck. Orders typically ship within 3–7 business days. A complete system travels as two crates — condenser and air handler — which can arrive on different days. Delivery is to your address on a liftgate truck for one flat price, with nothing to choose at checkout. What delivery costs.
  4. The carrier calls to book a delivery window. That appointment is when your equipment arrives — not the ship date. Answer the call; an unanswered one is the most common cause of a delay.
  5. Inspect it before you sign. Two minutes at the tail of the truck decide whether a damage claim works. Note any damage on the delivery receipt specifically, not just "damaged", and photograph it before it comes off the truck. What to check.
  6. Your installer fits it. Line set, disconnect, whip, thermostat and equipment pad are not included — your installer supplies those. Warranty terms are set by the manufacturer and vary by brand and product line; check them before you buy, and register the equipment if the terms allow. Warranty terms.

Stuck on any of it, or not sure a pairing is right? Call (239) 266-9766 — you'll get a straight answer.

Browse

Appears in

Add an electric heat kit

Field-installed electric heat strip for the air handler — adds supplemental or backup heat. Choose the output for your home.

Electric heat kit

Everwell Electric Heat Kit — Front-Return Air Handlers

Field-installed and matched to your air handler. Verify breaker sizing before ordering.

$133.00

Not sure which output you need? Request a quote and we'll match the kit to your air handler.
