Everwell CAC-15 Air Conditioner — Complete System with AHC Air Handler

Everwell

Everwell CAC-15 Air Conditioner — Complete System with AHC Air Handler

Value-line cooling, matched and certified — with the certificate published.

$2,698.00
Complete matched system · Delivered to your door
$349 delivered to your door — liftgate included, whatever it weighs. $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY.
Request a Quote Call

Pay over time with Shop Pay — your options and terms are shown at checkout. How payment works

Our promise on every order

  • Typically ships in 3–7 business days — crated and moved by LTL freight from Fort Myers, FL. The carrier then schedules delivery with you.
  • A genuine AHRI-certified pair — the certified reference number is published in the specifications below, so you can look the rating up yourself before you order.
  • Check your match in seconds — put in the two model numbers you were quoted and see whether that pair is AHRI-certified before you spend anything. Not sure, or not our equipment? Send them to us and we will look them up by hand.
  • 30 days to return unopened equipment — full returns policy.
AHRI certified Ships nationwide R-454B
Overview

About this system

The Everwell CAC-15 condenser matched to the AHC standard-return air handler — the least expensive complete matched system we sell, and one that arrives with its AHRI certificate published rather than promised.

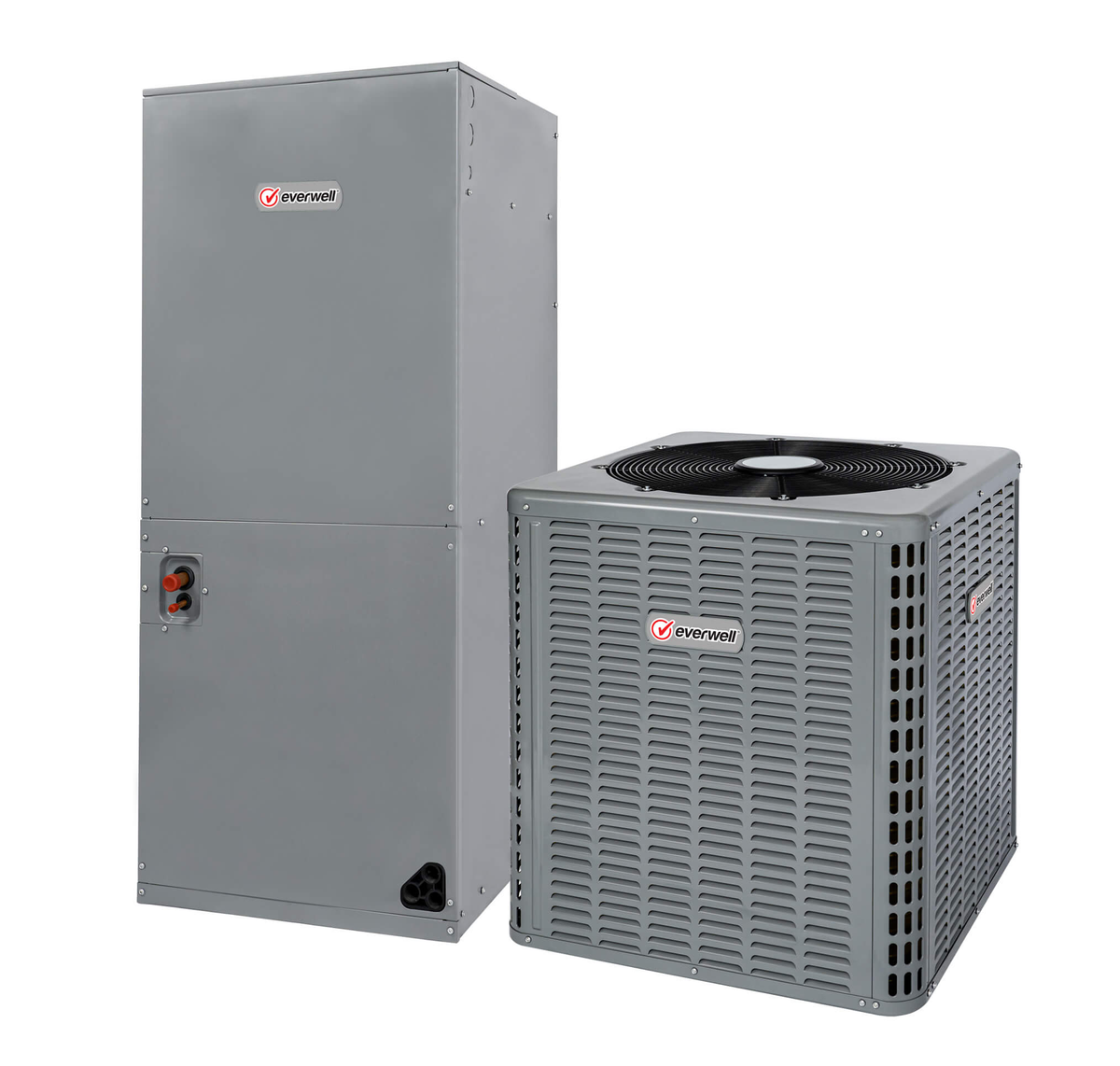

What ships

  • Outdoor unit — Everwell CAC-15 R-454B condenser, GoldFin™-coated all-copper coil
  • Indoor unit — Everwell AHC standard-return air handler
  • Two crates, shipped together as an AHRI-certified matched pair

What it actually rates

14.3 SEER2 from 1.5 through 4 ton. The 5 ton pairing certifies at 13.8. That figure belongs to this specific condenser and this specific air handler together — not to the box outside — which is why we publish it per size instead of printing one number across the range.

Everwell publishes a certificate for every matched pair, and the link for the size you select is in the documents on this page. You can read the certified rating yourself before you spend anything. Not sure whether a pair you were quoted elsewhere is certified? Check it here.

The GoldFin coil

An all-copper coil with a corrosion-resistant coating, aimed at the thing that actually kills condensers in this state. Salt air and permanent humidity are where standard coil coatings fail early, and on the Gulf Coast that is what decides whether a unit gives you twelve years or twenty.

The AHC air handler

Standard return — the duct enters the cabinet the conventional way, which suits most upflow closet and attic installs. It also takes the larger strip heat. The Everwell AHC heat kit goes up to 20 kW, and this is a cooling-only system, so if there is no furnace in the house that kit is the only heat there is. Choose this handler over the front-return FAHC if you need those sizes.

Sizing — 1.5 to 5 ton

Seven capacities. Get a Manual J load calculation from a contractor who has walked the property. An oversized system short-cycles, never pulls the humidity out, and costs more to run than a correctly sized smaller one — sizing beats efficiency every time.

Before you order

  • Must be installed by a licensed HVAC professional — opening a refrigerant circuit requires EPA certification, and the manufacturer warranty depends on it
  • Line set, disconnect, whip, thermostat and equipment pad are not included
  • Cooling only. For heat from the same outdoor unit, see the CAC-15 heat pump version
  • Ships as two crates — read receiving a freight delivery before delivery day
Highlights

Key features

  • 14.3 SEER2 cooling, AHRI-certified as a matched pair
  • AHRI certificate linked on every size — check the rating yourself
  • GoldFin™ coated all-copper coil resists coastal corrosion
  • AHC standard-return air handler, 15 kW and 20 kW heat kits available
  • R-454B low-GWP refrigerant throughout
  • Ships as two crates — condenser and air handler
The brand

Why Everwell?

See everything we carry from Everwell

Everwell is where the price per BTU is lowest — a complete matched system here costs less than some condensers do on their own.

  • Current-spec refrigerant throughout. R-454B across the central range. Nothing is last-generation stock being cleared ahead of the phase-out.
  • GoldFin coil coating. Built for high-humidity and salt-air environments where standard coil coatings fail early — the same problem the all-aluminum coils solve elsewhere in our catalogue, addressed a different way.
  • AHRI certified and ETL listed, with a certificate published per matched pair. You can pull the certificate and check the rating yourself before you spend anything — the link is in the documents on this listing.
  • Complete matched systems from $2,698. That is less than some Trane condensers cost on their own, before you have bought an air handler.
  • Both halves from one manufacturer. Condenser and air handler engineered together, so the pairing is not something you have to go and verify yourself.
The detail

Specifications & documents

Manufacturer-published figures for the model you have selected above.

At a glance

Model numberCAC1814CA15+AHC2414BA15
Capacity 17,000 BTU cooling
Efficiency14.3 SEER2 · 11.7 EER2
RefrigerantR-454B
AHRI reference no. 216699610

This is the certified rating for this exact pair — CAC1814CA15 with AHC2414BA15. A matched pair rates differently from either unit on its own, and this is the number your installer puts on a permit or a rebate application.

Full specifications CAC1814CA15+AHC2414BA15
System typeComplete System
Outdoor unit modelCAC1814CA15
Indoor unit modelAHC2414BA15
Crate dimensions25 x 25 x 26.2 + 22.83 x 25.6 x 47.63 in

Manufacturer-published figures for CAC1814CA15+AHC2414BA15. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.

Documents 2 items

Published by the manufacturer and served from their site, so the certificate you open is always the current rating. Verify all details against the documentation shipped with your unit before installation.

Before you buy

Worth reading first

Written by people who install this equipment.

All buying guides

Getting it there

Shipping & returns

  • $349 delivered to your door, liftgate included — $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY. One flat price whatever it weighs, with nothing added at checkout.
  • Must be installed by a licensed HVAC professional — opening refrigerant lines requires EPA certification.
  • 30-day returns on unopened equipment, 20% restocking fee. No returns on installed units.

Full shipping & returns policy

How buying direct works — the whole process, start to finish 6 steps

You are buying the equipment from us and the labour from an installer you choose. Two numbers instead of one bundled quote — which is the point, but it does mean you are the one connecting them. Here is the whole sequence.

  1. Order the equipment. The price on this page is what you pay us. Nothing about installation is included in it, and nothing is added later.
  2. Line up your installer before it ships. This is the step people skip, and it is the one that causes trouble — equipment sitting in a garage while you ring round for someone free. You need a licensed HVAC professional; opening a refrigerant circuit requires EPA certification. Ask specifically what they charge to install customer-supplied equipment. How to find one.
  3. It ships crated on a freight truck. Orders typically ship within 3–7 business days. A complete system travels as two crates — condenser and air handler — which can arrive on different days. Delivery is to your address on a liftgate truck for one flat price, with nothing to choose at checkout. What delivery costs.
  4. The carrier calls to book a delivery window. That appointment is when your equipment arrives — not the ship date. Answer the call; an unanswered one is the most common cause of a delay.
  5. Inspect it before you sign. Two minutes at the tail of the truck decide whether a damage claim works. Note any damage on the delivery receipt specifically, not just "damaged", and photograph it before it comes off the truck. What to check.
  6. Your installer fits it, then register the warranty. Line set, disconnect, whip, thermostat and equipment pad are not included — your installer supplies those. Registering within 60 days of installation takes about four minutes and extends parts coverage from five years to ten. Warranty terms.

Stuck on any of it, or not sure a pairing is right? Call (239) 266-9766 — you will get someone who installs this equipment.

Browse

Appears in

Add an electric heat kit

Field-installed electric heat strip for the air handler — adds supplemental or backup heat. Choose the output for your home.

Electric heat kit

Everwell Electric Heat Kit — Standard-Return Air Handlers

Field-installed and matched to your air handler. Verify breaker sizing before ordering.

$129.00

Not sure which output you need? Request a quote and we'll match the kit to your air handler.
