Catalog /RunTru by Trane

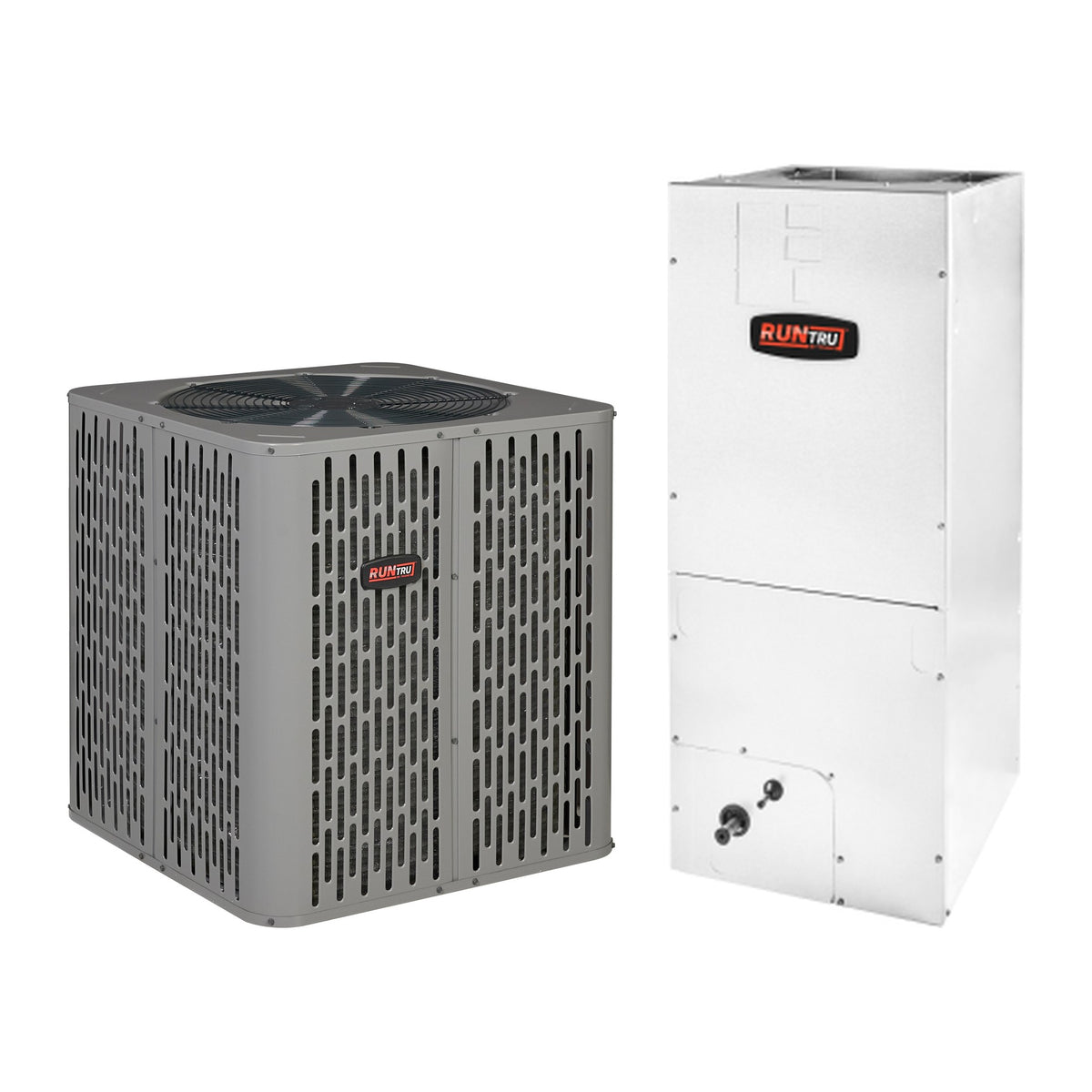

RunTru A5HP4 Heat Pump System with A5AHC Air Handler: outdoor condenser and indoor air handler shown side by side (manufacturer photos)

RunTru by Trane

RunTru A5HP4 Heat Pump System — 14.3 SEER2, A5AHC Air Handler, R-454B

Heat and cool from one unit, at the builder-line price.

$3,875.89
Complete matched system · Delivered to your door
$349 delivered to your door — liftgate included, whatever it weighs. $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY.
Request a Quote Call
WELCOME100 Code WELCOME100 saves $100 on systems $1,400+ at checkout
📱 📱 Text a Photo of Your Rating Plate or Quote to (239) 266-9766 for an Instant Match Check Tap to text your outdoor unit's rating plate photo or contractor quote to (239) 266-9766 for a fast AHRI match & price check
Got a $12k+ contractor quote? Free Quote Audit → · Interactive AHRI Match Checker →

Pay over time with Shop Pay — your options and terms are shown at checkout. How payment works

Our promise on every order

  • Typically ships in 3–7 business days — crated and moved by LTL freight from Southwest Florida. The carrier then schedules delivery with you.
  • A genuine AHRI-certified pair — the certified reference number is published in the specifications below, so you can look the rating up yourself before you order.
  • Check your match in seconds — put in the two model numbers you were quoted and see whether that pair is AHRI-certified before you spend anything. Not sure, or not our equipment? Send them to us and we will look them up by hand.
  • 30 days to return unopened equipment — full returns policy.
What's included, and what your installer supplies Ships as two crates by freight. Installation is not included.

In the box: the outdoor condenser and the indoor air handler, the matched pair for the size you choose (model numbers are in the specifications below). The condenser comes with its factory refrigerant charge.

Your installer supplies the line set (or reuses yours if it qualifies: reuse or replace?), electrical disconnect and whip, thermostat and control wire, condensate drain and float switch, a condenser pad or wall brackets, and the permit.

Electric heat is not included. If you want it, add the matching Trane / RunTru heat kit.

Installation is by your licensed HVAC contractor. How to find one.

Need an installer? Tell us where it's going and we'll help you find a licensed one.

Equipment from us has to be installed by a licensed HVAC contractor. Send your ZIP and we'll reply with licensed installers we know near you, or how to find a good one if we don't know anyone in your area. Free, and no obligation to buy.

A person replies. We don't sell or share your details. How to choose an installer

AHRI certified Ships to the continental US R-454B
Overview

About this system

The RunTru A5HP4 heat pump condenser matched to the A5AHC air handler — one outdoor unit that cools in summer and heats in winter, with no furnace, no gas line and no flue. For a house in a mild climate, this is the whole HVAC system in two boxes.

What ships

  • Outdoor unit — RunTru A5HP4 heat pump condenser, 14.3 SEER2, single-stage, R-454B
  • Indoor unit — RunTru A5AHC air handler, multi-position, insulated factory-sealed cabinet
  • Both units crated and shipped together as an AHRI-matched pair

How a heat pump heats

Rather than burning fuel, a heat pump reverses its refrigerant cycle and moves heat from the outside air into the house. Even at 40°F there is usable heat in outdoor air, and moving it is far cheaper than generating it. That is why heat pumps run at several hundred percent efficiency where a resistance heater tops out at one hundred.

The trade-off is cold weather. As outdoor temperatures drop, capacity falls, and below a certain point the system leans on supplemental electric heat strips. In Florida, coastal Texas and most of the Southeast that point is rarely reached. Further north, a heat pump is usually paired with a furnace in a dual-fuel setup instead.

Sizing — 1.5 to 5 ton

Seven capacities. Heat pumps are sized on the cooling load first, then checked against the heating load — which is one more reason to get a Manual J calculation rather than guessing from floor area. Send us the model numbers and we will confirm a certified match.

Before you order

  • Must be installed by a licensed HVAC professional — EPA certification is required to open refrigerant lines
  • Plan for supplemental heat. The BAYHTR electric heat kit fits the A5AHC and is what carries the house on the coldest nights and during defrost cycles
  • Line set, disconnect, whip, thermostat and equipment pad are not included — note that a heat pump needs a thermostat that supports one
  • Warranty terms are set by the manufacturer and may require registration within 60 days of installation. Review them before you buy: see our warranty page

HVAC Supply Pro LLC is an independent retailer. We are not affiliated with, endorsed by, or an authorized dealer of Trane, RunTru or Everwell; brand names are used only to identify the equipment we sell. All equipment is new, in its original factory packaging.

Product photos are representative manufacturer images; actual appearance may vary slightly.

Highlights

Key features

  • 14.3 SEER2 cooling plus heating, AHRI-certified as a matched pair
  • One outdoor unit heats and cools — no separate furnace
  • Built by Trane Technologies — same plants, lower price point
  • A5AHC multi-position air handler fits any closet orientation
  • R-454B low-GWP refrigerant throughout
  • Ships as two crates — condenser and air handler
The brand

Why RunTru by Trane?

See everything we carry from RunTru by Trane

RunTru is Trane's value line. On a complete system you are buying the pairing as much as the parts — the condenser and the air handler certified together.

  • Same manufacturer, same engineering discipline. RunTru is not a rebadged import — it is Trane's own product, built to Trane's standards. The badge is different; the build is not.
  • The pair is what gets rated, not the condenser. AHRI certifies an outdoor unit against one specific air handler. The reference number on this listing is for that exact combination — which is also the number a rebate administrator or a permit office asks for.
  • The A5AHC is multi-position. One air handler part number installs upright or horizontal, so the certified pairing does not have to change because of the space you have to put it in.
  • All-aluminum coils. These resist the galvanic corrosion that eats copper-and-aluminum coils in coastal and high-humidity air — a real advantage in exactly the climates this equipment sells into.
  • Published warranty terms. Built by Trane Technologies. RunTru publishes its own warranty terms, similar in structure to Trane's. Check them at runtruhvac.com/warranty.
The detail

Specifications & documents

Manufacturer-published figures for the model you have selected above.

At a glance

Model numberA5HP4018A1000A+A5AHC002A1B30A
Capacity 19,000 BTU cooling
Efficiency14.3 SEER2 · 11.7 EER2 · 7.5 HSPF2
Power supply208-230V / 1Ph / 60Hz
RefrigerantR-454B
AHRI reference no. 215610992Look it up at AHRI

This is the certified rating for this exact pair — A5HP4018A1000A with A5AHC002A1B30A. A matched pair rates differently from either unit on its own, and this is the number your installer puts on a permit or a rebate application. The link opens this system's own record in the AHRI directory, where you can download the certificate.

Full specifications A5HP4018A1000A+A5AHC002A1B30A
System typeComplete System
Outdoor unit modelA5HP4018A1000A
Indoor unit modelA5AHC002A1B30A
Crate dimensions38.3 x 31.1 x 31.1 + 46.5 x 22.5 x 25.5 in
WarrantyManufacturer's limited warranty from RunTru (a Trane brand), not HVAC Supply Pro. RunTru decides coverage. Its published terms require installation by a licensed HVAC professional and offer longer parts coverage if registered within 60 days. Review RunTru's terms, including exclusions, before you buy: runtruhvac.com/warranty. Labor is not covered.

Manufacturer-published figures for A5HP4018A1000A+A5AHC002A1B30A. Capacity and voltage differ between models in this series — confirm against the technical sheet before ordering.

Documents 3 items

Published by the manufacturer. Verify all details against the documentation shipped with your unit before installation.

Model numbers

All models in this series

Every size we carry, with the full model number your installer and AHRI will ask for.

Model numberSizePrice
A5HP4018A1000A+A5AHC002A1B30A 1.5 Ton $3,875.89
A5HP4024A1000A+A5AHC003A1B30A 2 Ton $4,071.43
A5HP4030A1000A+A5AHC004A1B30A 2.5 Ton $4,260.89
A5HP4036A1000A+A5AHC004A1B30A 3 Ton $4,390.36
A5HP4042A1000A+A5AHC006A1D30A 3.5 Ton $5,222.50
A5HP4048A1000A+A5AHC006A1D30A 4 Ton $5,389.91
A5HP4060A1000A+A5AHC007A1D30A 5 Ton $5,747.68
From buyers

Reviews

Left by people who bought this from us.

Before you buy

Worth reading first

Written by HVAC Supply Pro.

All buying guides

Getting it there

Shipping & returns

  • $349 delivered to your door, liftgate included — $499 to AZ, CA, CO, ID, MT, NM, NV, OR, UT, WA and WY. One flat price whatever it weighs, with nothing added at checkout. Ships to the 48 contiguous states and DC.
  • Must be installed by a licensed HVAC professional — opening refrigerant lines requires EPA certification.
  • 30-day returns on unopened equipment, 20% restocking fee. No returns on installed units.

Full shipping & returns policy

How buying the equipment yourself works — the whole process, start to finish 6 steps

You are buying the equipment from us and the labour from an installer you choose. Two numbers instead of one bundled quote — which is the point, but it does mean you are the one connecting them. Here is the whole sequence.

  1. Order the equipment. The price on this page is what you pay us. Nothing about installation is included in it, and nothing is added later.
  2. Line up your installer before it ships. This is the step people skip, and it is the one that causes trouble — equipment sitting in a garage while you ring round for someone free. You need a licensed HVAC professional; opening a refrigerant circuit requires EPA certification. Ask specifically what they charge to install customer-supplied equipment. How to find one.
  3. It ships crated on a freight truck. Orders typically ship within 3–7 business days. A complete system travels as two crates — condenser and air handler — which can arrive on different days. Delivery is to your address on a liftgate truck for one flat price, with nothing to choose at checkout. What delivery costs.
  4. The carrier calls to book a delivery window. That appointment is when your equipment arrives — not the ship date. Answer the call; an unanswered one is the most common cause of a delay.
  5. Inspect it before you sign. Two minutes at the tail of the truck decide whether a damage claim works. Note any damage on the delivery receipt specifically, not just "damaged", and photograph it before it comes off the truck. What to check.
  6. Your installer fits it. Line set, disconnect, whip, thermostat and equipment pad are not included — your installer supplies those. If the manufacturer's terms allow, register the equipment. Trane and RunTru offer longer parts coverage when registered within 60 days, subject to their conditions. Check the manufacturer's terms before you buy. Warranty terms.

Stuck on any of it, or not sure a pairing is right? Call (239) 266-9766 — you'll get a straight answer.

Browse

Appears in

Add an electric heat kit

Field-installed electric heat strip for the air handler — adds supplemental or backup heat. Choose the output for your home.

Electric heat kit

Trane / RunTru Electric Heat Kit

Field-installed and matched to your air handler. Verify breaker sizing before ordering.

$139.00

Not sure which output you need? Request a quote and we'll match the kit to your air handler.
