Catalog / AHRI match check / 5TTR6018A1000A + 5TAM5B01AC21S
AHRI certified air conditioner system · 1.5 Ton

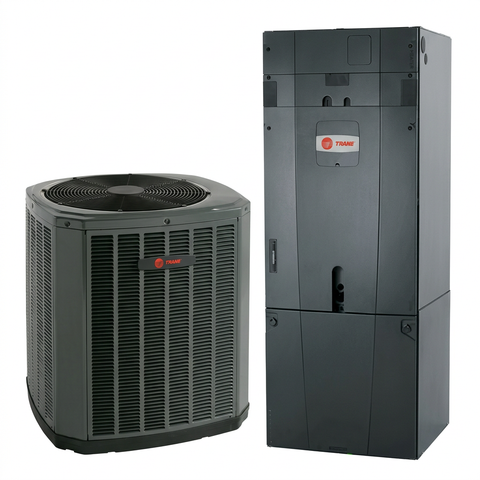

Trane 5TTR6018A1000A + 5TAM5B01AC21S
The Trane 5TTR6018A1000A air conditioner condenser and the 5TAM5B01AC21S air handler are certified together by AHRI under reference number 218102518. As a pair they are rated 17.0 SEER2 and 12.0 EER2, at 18,500 BTU/h of cooling. That reference number is what a permit office, a utility rebate form or the 25C tax-credit worksheet asks for.
Certified rating for this pair
| Outdoor unit | 5TTR6018A1000ATrane 5TTR6 Air Conditioner Condenser — 1.5 to 5 Ton, 16 SEER2 Series, R-454B |
|---|---|
| Indoor unit | 5TAM5B01AC21STrane Hyperion 5TAM5 Multi-Speed Air Handler — 1.5 to 5 Ton, R-454B |
| AHRI reference | 218102518 |
| System type | Air conditioner · split system |
| Cooling capacity | 18,500 BTU/h · 1.5 Ton |
| SEER2 | 17.0 |
| EER2 | 12.0 |
| Refrigerant | R-454B |
| Power supply | 208-230V / 1Ph / 60Hz |
| Certificate | View the AHRI record |
Figures are AHRI’s published ratings for this exact combination. A different air handler on the same condenser carries a different rating and a different reference number — see the partner lists below.
Other certified matches for the 5TTR6018A1000A
Same condenser, different air handler, different rating.
- 5TTR6018A1000A + 5TMM5B0A30M21SRef 218433901
- 5TTR6018A1000A + 5TEM4B02AC21SRef 218102669
What the reference number is for
- Permits. Most jurisdictions ask for the certified rating of the installed combination, not the condenser alone. The reference number is the lookup key.
- Rebates. Utility programs verify efficiency against AHRI’s record for the pair. Where the rebate money is now.
- The 25C tax credit. The credit is tied to the certified rating of the system as installed. Is there still a credit in 2026?
We verify pairs; we do not size systems. Whether 1.5 ton is right for your home is a Manual J question for your installer — how to find one. More on why the pair matters: Why an AHRI-matched system matters.
